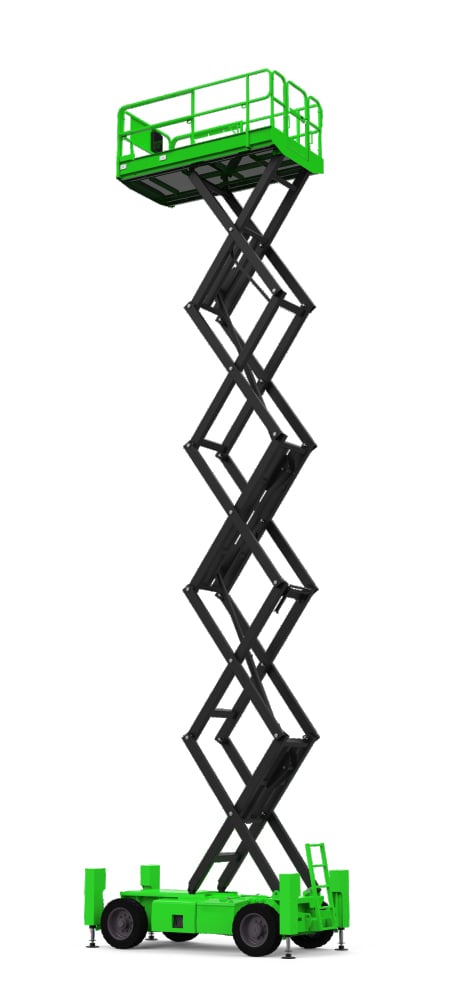

Self Propelled Rough Terrain Scissor lift
Our self-propelled rough terrain scissor lifts are advanced aerial work platforms designed for tough environments. Powered by batteries, they offer zero emissions and ultra-quiet operation, making them ideal for both indoor and outdoor applications.
Equipped with a powerful 4-wheel drive system, these lifts deliver excellent traction and gradeability, ensuring smooth movement across uneven surfaces—even at maximum speed. The ability to drive at full height significantly enhances on-site efficiency and productivity.
To support long-term performance and reliability, the lift includes an intelligent on-board diagnostic system and real-time fault alarm, helping operators quickly identify and resolve issues.
Key Features:
-
Eco-Friendly Operation: 100% electric drive ensures zero emissions and low noise—ideal for environmentally sensitive workspaces.
-
High Load Capacity: With a super load capacity of up to 560 kg, the platform offers stable, secure lifting for multiple workers and tools.
-
All-Terrain Performance: 4-wheel drive delivers strong power, excellent climbing capability, and fast travel speed across rough terrain.
-
Smart Monitoring: Built-in diagnostic system and intelligent fault alarm provide real-time system status, improving safety and reducing downtime.
Efficient. Reliable. Built to Conquer Rough Terrain.
Specification:
| Model | MRT800 | MRT1000 | MRT1200 | MRT1300 | MRT1600 |
| Max Working Height | 10m | 12m | 14m | 15m | 18m |
| Max Platform Height | 8m | 10m | 12m | 13m | 16m |
| Max Outreach | 1.5m | 1.5m | 1.5m | 1.2m | 1.2m |
| Length-PLatform Extended | 4m | 4m | 4m | 6.3m | 6.3m |
| Length with Outreach | 3.23m | 3.23m | 3.23m | 4.88m | 4.88m |
| Width Stowed | 1.81m | 1.81m | 1.81m | 2.3m | 2.3m |
| Height Stowed(guardrails unfolded) | 2.62m | 2.74m | 2.87m | 2.99m | 3.26m |
| Height Stowed(guardrails folded) | 1.91m | 2.04m | 2.16m | 2.19m | 2.47m |
| Wheelbase | 1.89m | 1.89m | 1.89m | 2.97m | 2.97m |
| Ground Clearance | 0.31m | 0.31m | 0.31m | 0.32m | 0.32m |
| Platform Size | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 3.9*1.9*1.15m | 3.9*1.9*1.15m |
| Skirting Board Height | 0.15m | 0.15m | 0.15m | 0.15m | 0.15m |
| Lifting Capacity | 567kg | 454kg | 345kg | 680kg | 680kg |
| Extension Lifting Capacity | 136kg | 136kg | 136kg | 230kg | 230kg |
| Drive Speed(Stowed) | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h |
| Drive Speed(Raised) | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h |
| Rising Time | 40s | 45s | 50s | 68s | 75s |
| Lowering Time | 35s | 37s | 42s | 50s | 55s |
| Gradeability | 35% | 30% | 30% | 45% | 45% |
| Turning Radius | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m | 2.72m/5.9m | 2.72m/5.9m |
| Tilt Sensor-Front to Back | 3° | 3° | 3° | 3° | 3° |
| Tilt Sensor-Side to Side | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Tire Specification | 675*280mm | 675*280mm | 675*280mm | 33*12-20solid tire | 33*12-20solid tire |
| Outrigger Level Ability-Front to Back | 6.6° | 6.6° | 6.6° | 7° | 7° |
| Outrigger Level Ability-Side to Side | 10.6° | 10.6° | 10.6° | 11° | 11° |
| Drive Mode | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS |
| Power Unit Motor | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw |
| Hydraulic Tank Capacity | 68L | 68L | 68L | 120L | 120L |
| Battery Specification | 235Ah | 235Ah | 235Ah | 235Ah | 235Ah |
| Control Voltage | 24V | 24V | 24V | 48V | 48V |
| Charger | 90-264V/40A | 90-264V/40A | 90-264V/40A | 48V/40A | 48V/40A |
| Weight(with Outriggers) | 4170kg | 4440kg | 5480kg | 8103kg | 9010kg |
